Dry Type Wired Remote Brass Body Water Mete (DN15-40)

Description

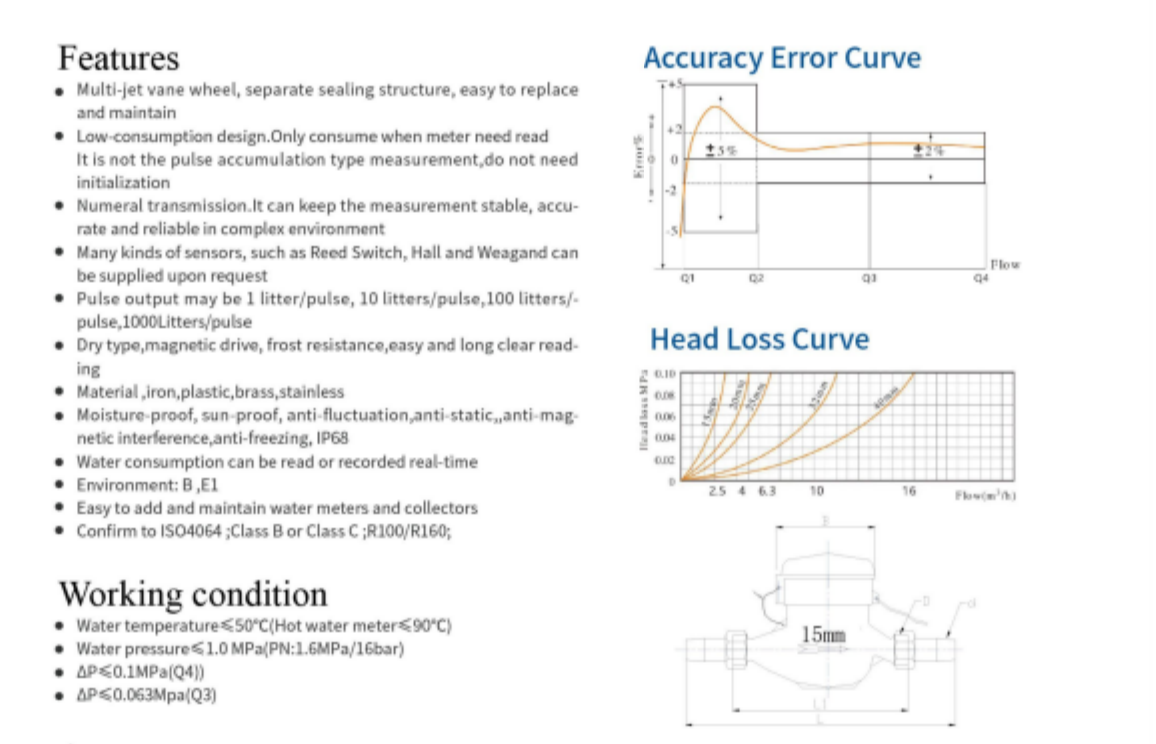

Features

● Multi-jet vane wheel,separate sealing structure,easy to replace and maintain ·Low-consumption design.Only consume when meter need read It is not the pulse accumulation type measurement,do not need initialization
● Numeral transmission.It can keep the measurement stable,accu- rate and reliable in complex environment
● Many kinds of sensors,such as Reed Switch,Hall and Weagand can besupplied upon request
● Pulse output may be 1 litter/pulse,10 litters/pulse,100 litters/- pulse,1000Litters/pulse ·Dry type,magnetic drive,frost resistance,easy and long clear read-
● Material,iron,plastic,brass,stainless
● Moisture-proof,sun-proof,anti-fluctuation,anti-static„anti-mag- netic interference,anti-freezing,IP68 ·Water consumption can be read or recorded real-time
● Environment:B,E1
● Easy to add and maintain water meters and collectors

Working condition

● Water temperature≤50℃(Hot water meter≤90℃)
● Water pressure≤1.0 MPa(PN:1.6MPa/16bar)
● △P≤0.1MPa(Q4))
● △P≤0.063Mpa(Q3)

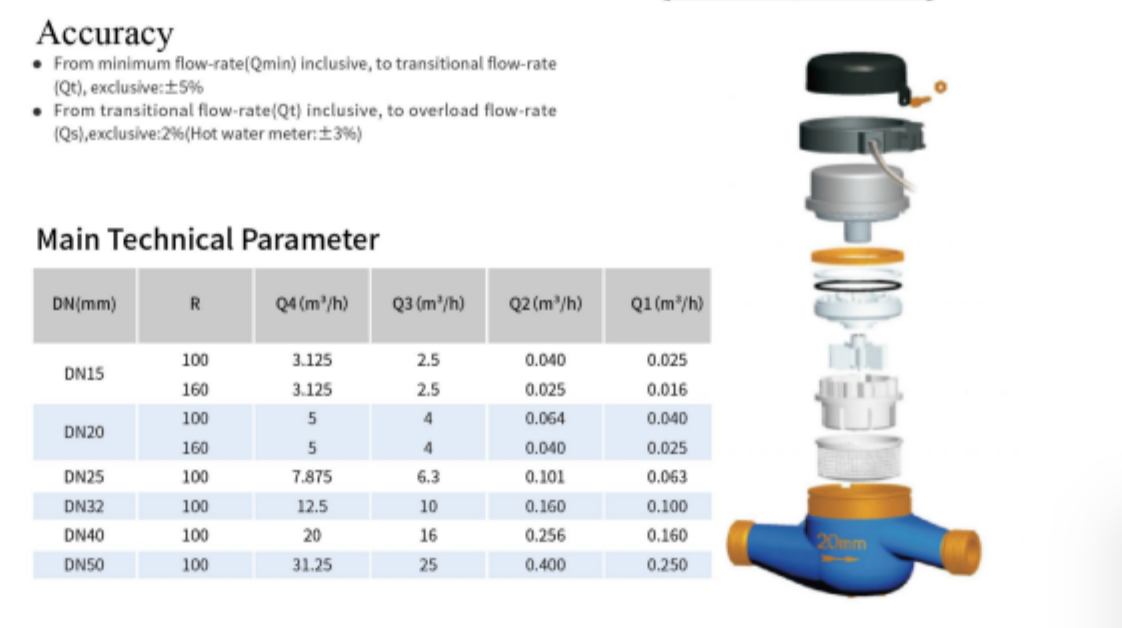

Accuracy

●From minimum flow-rate(Qmin) inclusive, to transitional flow-rate
● From transitional flow-rate(Qt) inclusive, to overload flow-rate (Qs),exclusive:2%6(Hot water meter:±3%)
