Multi-Jet Dry Type Vane Wheel Water Meter DN(15-50)

Description

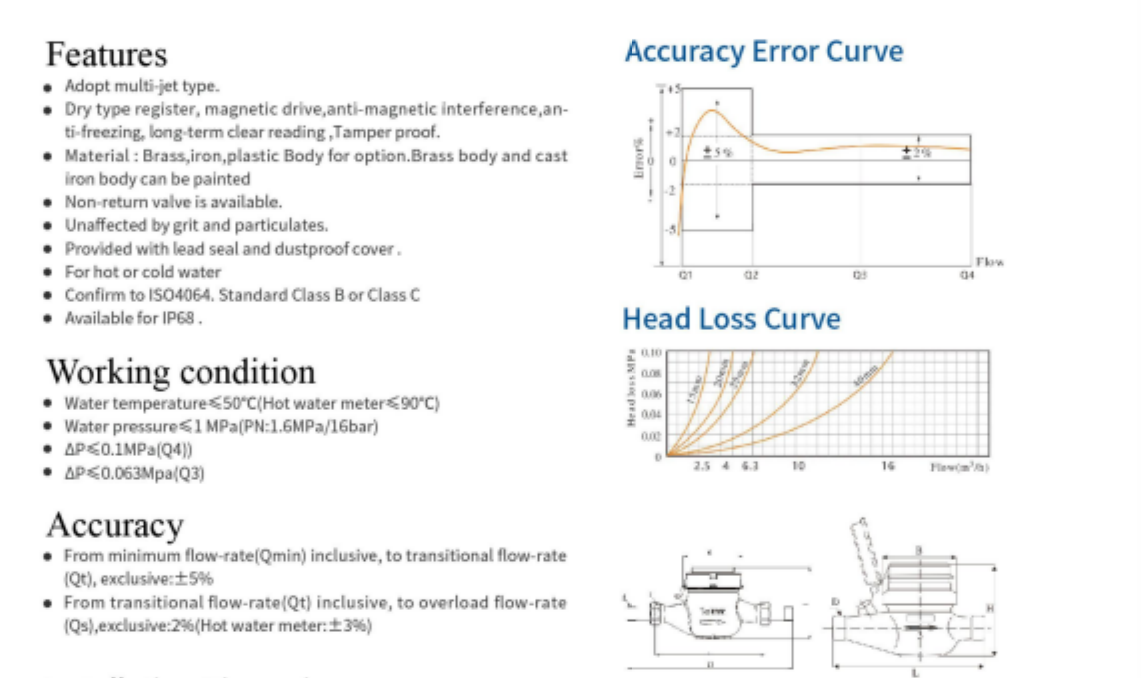

Features:

● Adopt multi-jet type
● Dry type register, magnetic drive, anti-magnetic interference, anti-freezing, long-term clear reading,Tamper proof.
● Material: Brass, iron, plastic Body for option.Brass body and cast iron body can be painted
● Non-return valve is available.
● Unaffected by grit and particulates.
● Provided with lead seal and dust-proof cover.
● For hot or cold water
● Confirm to ISO4064.Standard Class B or Class C
● Available for IP68.

Working condition:

● Water temperature≤50°℃(Hot water meter≤90℃)
● Water pressure≤1MPa(PN:1.6MPa/16bar)
● △P≤0.1MPa(Q4))
● △P≤0.063Mpa(Q3)

Accuracy :

● From minimum flow-rate(Qmin) inclusive, to transitional flow-rate (Qt),exclusive:±5%
● From transitional flow-rate(Qt) inclusive, to overload flow-rate (Qs),exclusive:2%6(Hot water meter:±3%)
