Description

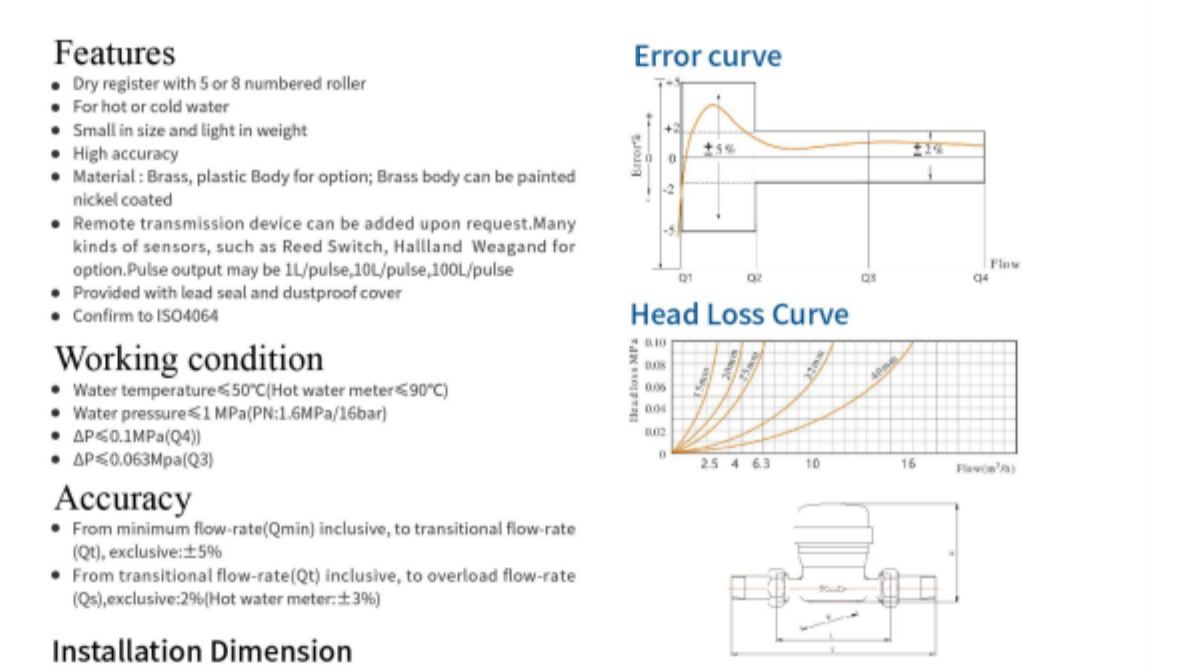

Features
● Dry register with 5or8numbered roller
● For hot orcold water ·Small in size and light in weight
● High accuracy
● Material:Brass,plastic Body for option;Brass body can be painted nickel coated
● Remote transmission device can be added upon request.Many kinds of sensors,such as Reed Switch,Hallland Weagand for option.Pulse output may be 1L/pulse,10L/pulse,100L/pulse
● Provided with lead seal and dustproof cover
● Confirm to IS04064
Working condition
● Water temperature≤50°℃(Hot water meter≤90℃)
● Water pressure≤1MPa(PN:1.6MPa/16bar)
● △P≤0.1MPa(Q4))
● △P≤0.063Mpa(Q3)
Accuracy
● From minimum flow-rate(Qmin)inclusive,to transitional flow-rate (Qt),exclusive:±5%
● From transitional flow-rate(Qt)inclusive,to overload flow-rate (Qs),exclusive:2%(Hot water meter:土3%)
